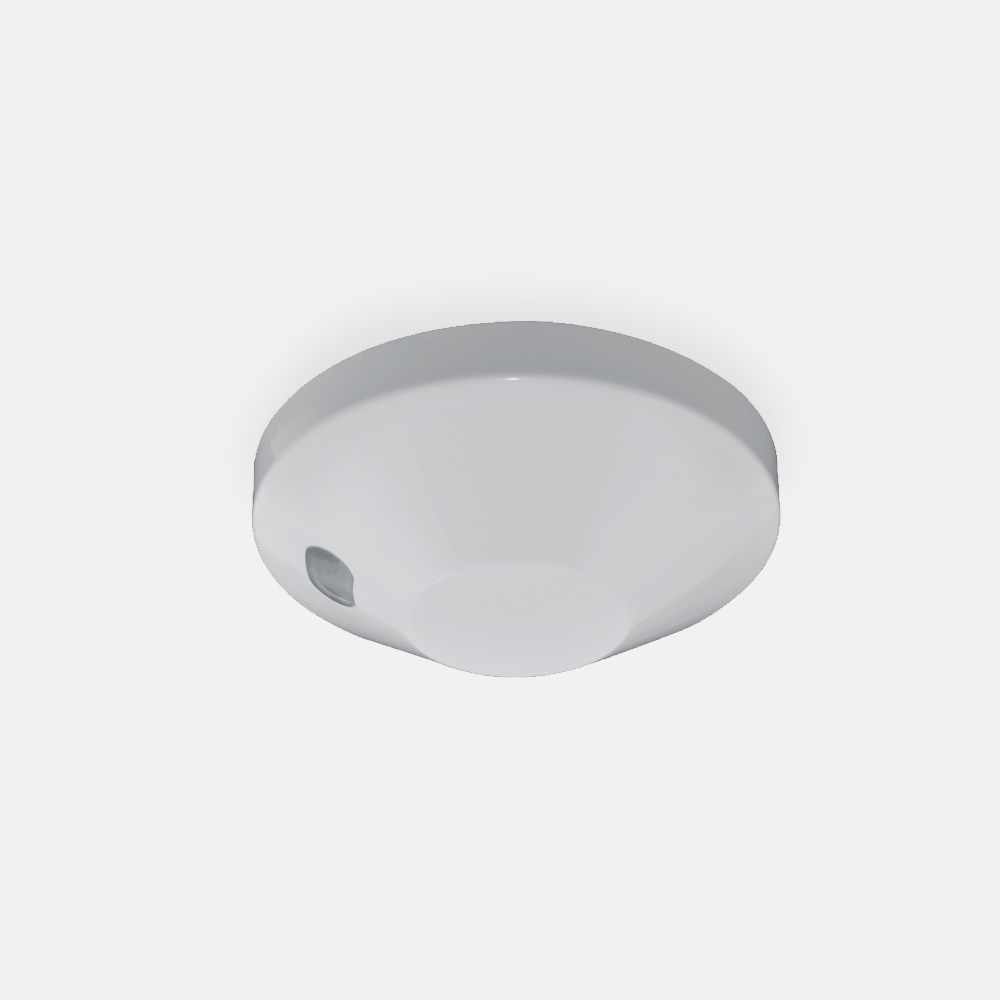

Presence Detection Switch

The AVADA presence detector combines two different technologies comprising Micro-Phonics
& Microwave technology to exhibit fast and functional way to detect even the lightest motion.
Optimum performance is achieve by using an advanced microprocessor and test pyro-electric element. Operates effectively in harsh environment (14ºF ~ 122ºF).







Download Product Leaflet >
Categories: ,

Description

Technology  Microwave + Microphonics
Power Source 120~270 VAC
Installation Type Ceiling Surface
Detection Angle 360 Degrees
Rated Load ( Relay ) 120 VAC ….. 800 Watt
Operating Voltage Uc (N-GND) 220 VAC ….. 1000 Watt
Temp. Over Voltage Protection UT (L-N) 277 VAC ….. 1200 Watt
Detection Range 1~8 m
Time Delay ( ON ) 10 seconds ~ 30 minutes
Light Control 10 ~ 1000 lm.
Standby Power 0.8 Watts
Working Temperature -10 C ~ 50 C (14 F ~ 122 F)
Dimension ( Product ) 115mm (d) x 35mm (h)
Weight ( Product ) 140 gms.
